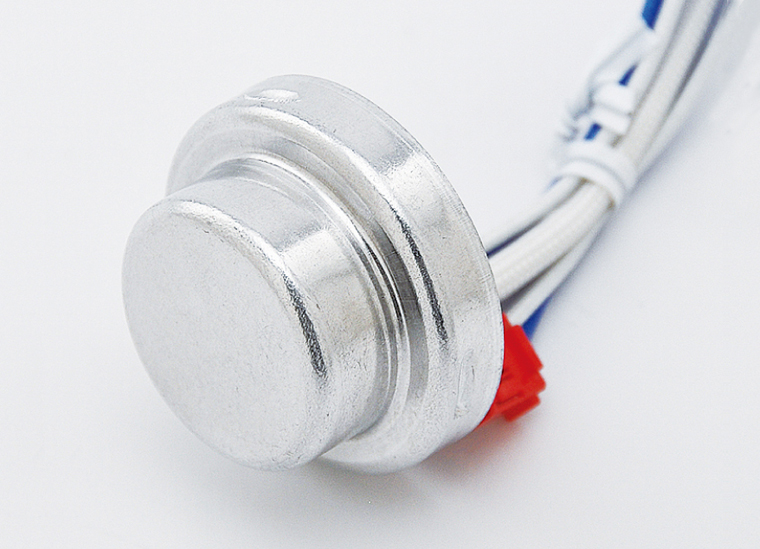

Sensor for the bottom of Rice Cooker kettle

Sensor for home appliances

Feature :

  • Measurement of the inner pot temperature is possible by attaching it to the bottom of the rice cooker and adhering it to the bottom of the inner pot.
  • The shape and material of the protection tube can be customized according to the operating environment.

Application :

Specification :

Resistance value
R100=6.282kΩ (example)
B constant
R75/100=4200K (example)
Thermal time constant
About 15 sec (Hot plate)
Operating temperature range
-20℃~200℃ (Protection tube only)
Insulation resistance
≥100MΩ at 500VDC
Withstand voltage
1500VAC for 3sec
