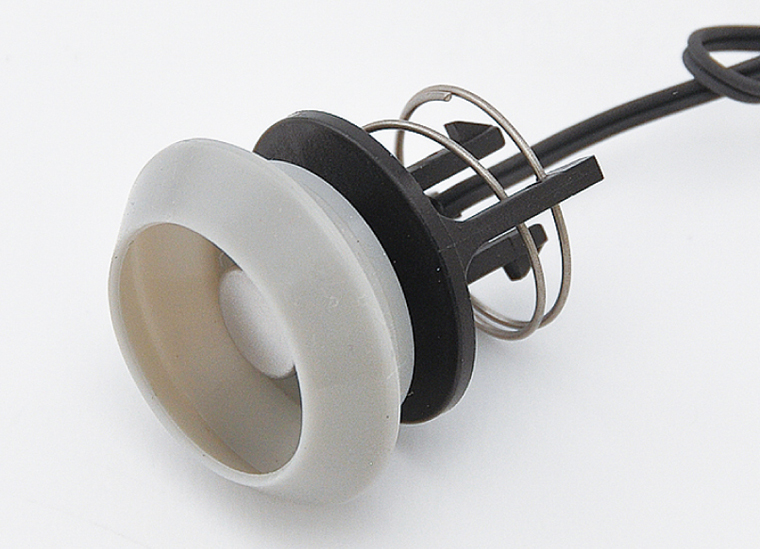

Sensor for Rice Cooker steam

Sensor for home appliances

Feature :

  • Attached to the top lid of a rice cooker, it can measure steam temperature.
  • The shape and material of the protection tube can be customized according to the operating environment.

Application :

Specification :

Resistance value
R75=13.8kΩ (example)
B constant
R75/100=4100K (example)
Thermal time constant
About 6.5 sec (Hot plate)
Operating temperature range
-20℃~180℃ (Protection tube and packing part only)
Insulation resistance
≥100MΩ at 500VDC
Withstand voltage
1500VAC for 3sec
