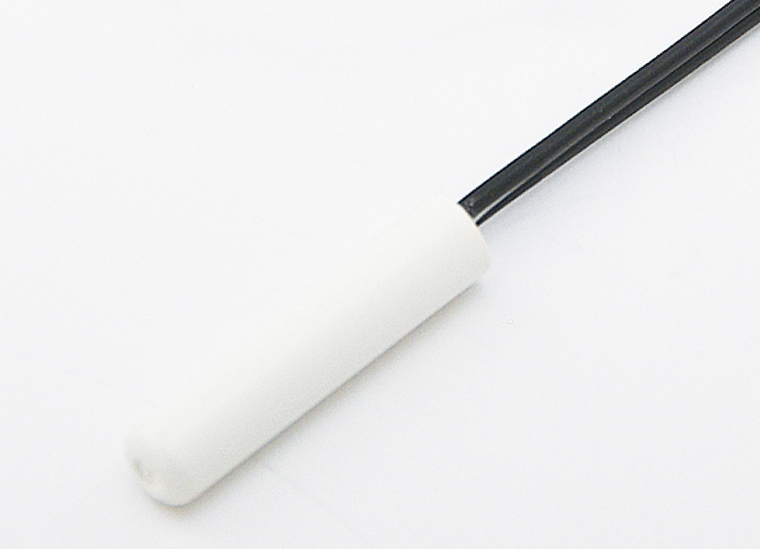

Sensor for Refrigerated Showcase
Sensor for industrial equipment
Feature :
- Can be installed inside the cabinet to measure the cabinet temperature
- Using a resin case with excellent cold resistance
Application :
- Temperature measurement inside refrigerated showcases
Specification :
- Resistance value
- R70=7.899kΩ (example)
- B constant
- R60/85=4251K (example）
- Thermal time constant
- About 18 sec（in stirring water）
- Operating temperature range
- -30℃～150℃
- Insulation resistance
- ≥100MΩ at 500VDC
- Withstand voltage
- 1800VAC for 1sec
