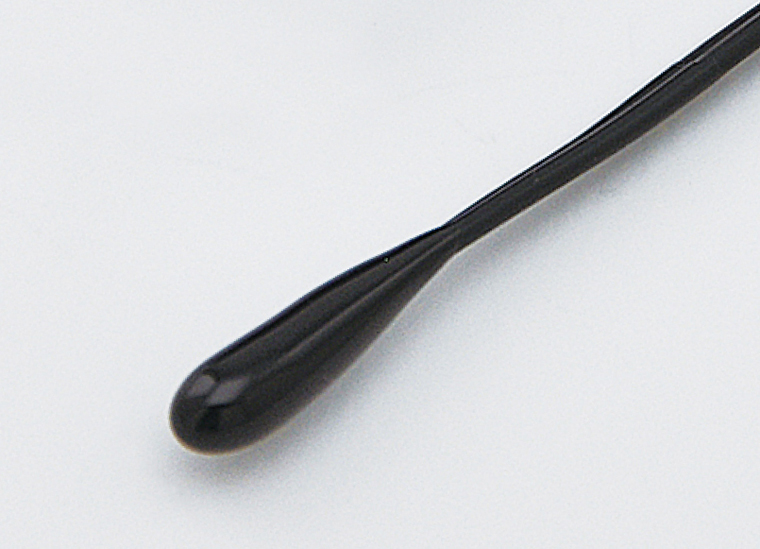

Sensor for Hot water storage tank

Sensor for household appliance

Feature :

  • Attached to the side of the hot water storage tank, hot water temperature and water level can be detected
  • Depending on the application, downsizing is possible

Application :

  • Detection of water level in hot water storage tank of water heater

Specification :

Resistance value
R25=10kΩ (example)
B constant
R25/50=3950K (example)
Thermal time constant
About 4 sec (in water)
Operating temperature range
Insulation resistance
≥100MΩ at 500VDC
Withstand voltage
1200VAC for 1sec
