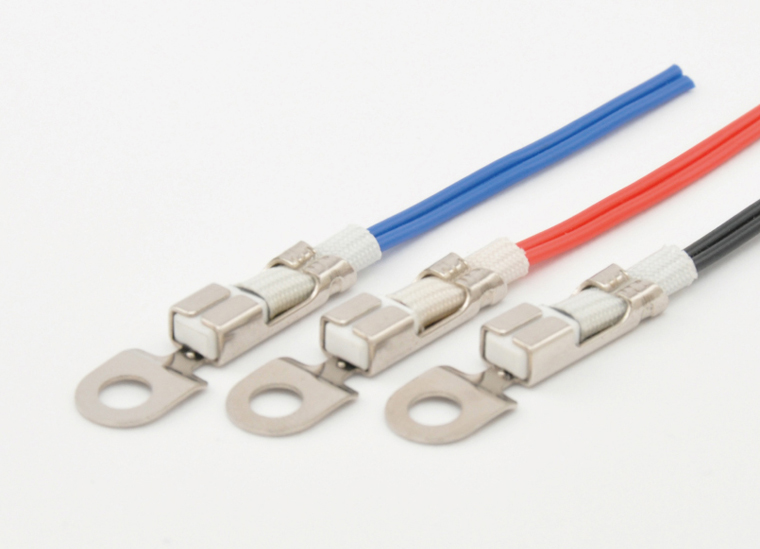

Sensor for Hot water storage tank

Sensor for household appliance

Feature :

  • Easily mounted on the surface of hot water storage tanks and capable of detecting water temperature and water level
  • The special shape of the screw stopper has a raised portion on its side, which prevents warping due to loading, adheres closely to the heat-sensitive part, and enables stable detection

Application :

  • Detection of water level in hot water storage tank of water heater

Specification :

Resistance value
R45=5.108kΩ (example)
B constant
R0/100=3300K (example)
Thermal time constant
About 4 sec (Hot plate)
Operating temperature range
Insulation resistance
≥100MΩ at 500VDC
Withstand voltage
1800VAC for 1sec
