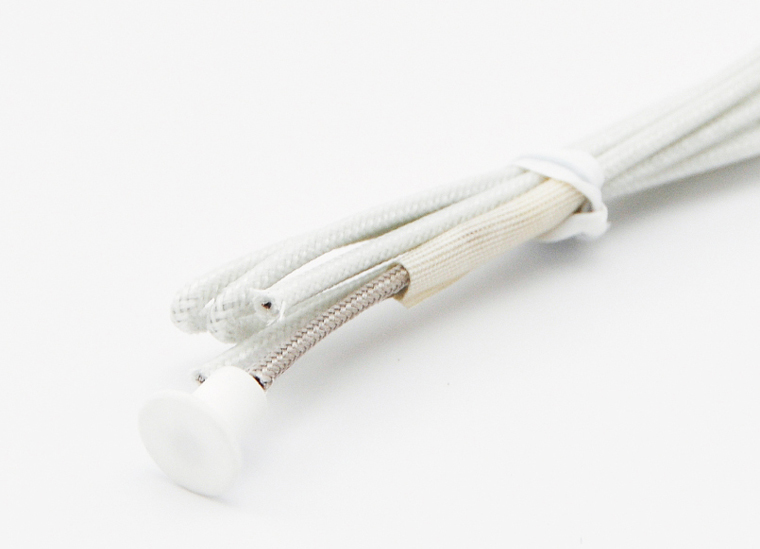

Sensor for IH Cooking Heater
Sensor for household appliance
Feature :
- Mounted on the back side of the glass top to measure the temperature of the bottom of the pot
- Ceramic case is unaffected by induction heating
Application :
- Cooking pot bottom temperature detection
Specification :
- Resistance value
- R200=1kΩ (example)
- B constant
- R100/200=4537K (example)
- Thermal time constant
- About 2 sec (in still air)
- Operating temperature range
- -20℃～220℃ (Thermal sensing part only)
- Insulation resistance
- ≥100MΩ at 500VDC
- Withstand voltage
- 1800VAC for 1sec
