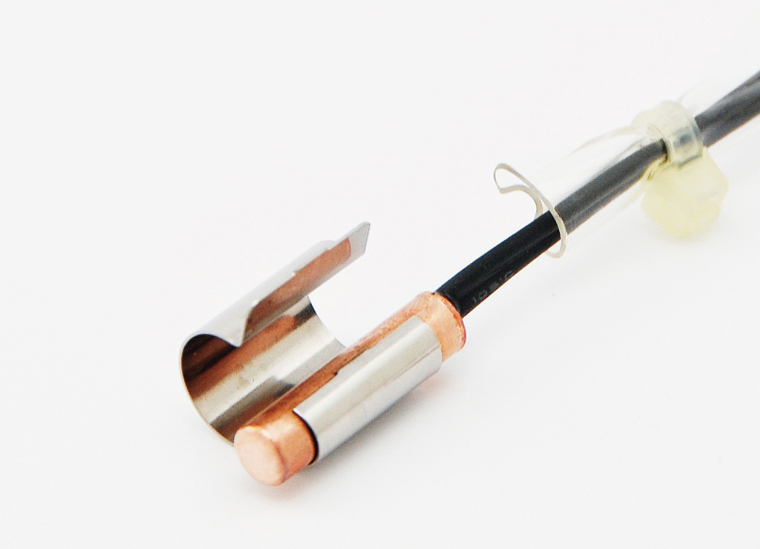

Sensor for Air conditioner

Sensor for home appliances

Feature :

  • The mounting bracket allows easy installation to the piping and measurement of the heat exchanger temperature
  • Various lineups of copper tubes and attachments

Application :

  • Temperature measurement of discharge pipe

Specification :

Resistance value
R25=50kΩ (example)
B constant
R25/50=3990K (example)
Thermal time constant
About 6 sec (in stirred water)
Operating temperature range
-30℃~105℃ (Protection tube and packing part only)
Insulation resistance
≥100MΩ at 500VDC
Withstand voltage
1200VAC for 1sec
